Challenger CL4P7
$5,825.00

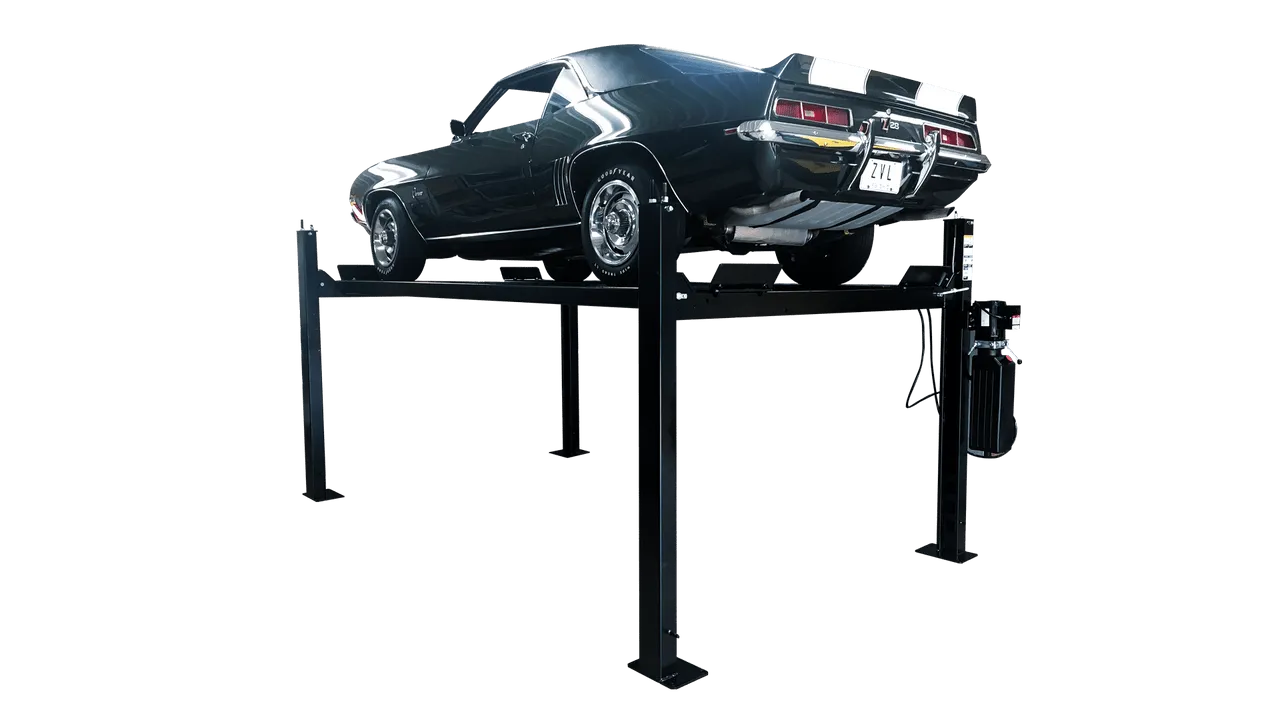

Challenger Lifts CL4P7 Home Storage Four Post Lift
7,000 lbs. Lifting Capacity
Challenger's Home Storage /DIY light duty general service lifts are commercial grade, yet economical for DIY enthusiasts. Features 115v electric/hydraulic operation for simple plug in and lift capability. Can be free standing for mobility or bolted to the floor for even more stability
Specifications
Specifications CL4P7
- Lifting Capacity 7,000 lbs.
- Length Overall 195.5"
- Width Overall 100.5"
- Inside Columns 92.125"
- Between Columns 147.5"
- Height of Columns 6’ 7.5"
- Height of Runways(Floor to top of Runway)5.75"
- Width of Runways 20"
- Width Between Runways 38"
- Rise Height(Top of Runway at top position)68.125"
- Clearance Height(Storage)63'
- Max. Wheelbase* 141.5"
- Crossbeam Clearance Height 63"
- Motor 1HP/2H
- Voltage(1 Phase Std)115v/230v
- Speed of Rise(115v/230v)120/60 s
- Min. Recommended Bay Size 10’ x 20’
- ALI/ETL Certified Yes
- Colors Available Black
- Warranty(5) Yrs Structure, (2) Yrs Parts, (1) Yr Labor
